D465Z Intel Haswell I3 I5 Embedded computer system Barebone mini fanless pc linux barebone mini pc linux

Short Description:

Product Introduction D465Z uses Intel® Haswell-U I5-4300U / 1.9GHz dual-core processor, Intel® Haswell-U SOC platform chipset, built-in Intel® HD core graphics card, and provides VGA and HDMI interface display output. Achieve independent dual display when VGA and HDMI are used at the same time. Supports SATA and SSD storage, which brings great convenience to the release of dynamic advertising information. The D465Z body adopts an all-aluminum alloy casing, fanless cooling structure, ultra-low...


Product Detail

Product Tags

Product Introduction

D465Z uses Intel® Haswell-U I5-4300U / 1.9GHz dual-core processor, Intel® Haswell-U SOC platform chipset, built-in Intel® HD core graphics card, and provides VGA and HDMI interface display output. Achieve independent dual display when VGA and HDMI are used at the same time. Supports SATA and SSD storage, which brings great convenience to the release of dynamic advertising information.

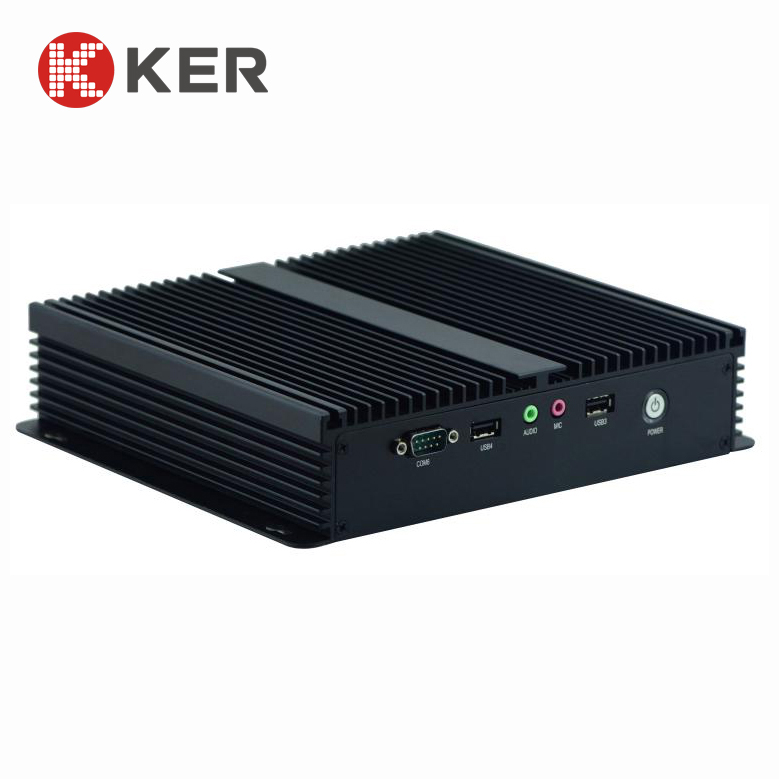

The D465Z body adopts an all-aluminum alloy casing, fanless cooling structure, ultra-low power consumption and compact structure. It is a network device and control box used in digital advertising applications.

Specification

Chassis Color Black
Dimension 235mm*200mm*52mm(L*W*H)
Structure Full aluminum fanless radiating structure
Material Full aluminum alloy
Intallation Desktop or embedded installation
Motherboard Model ITX-H45_I526L
Processor Integrated Intel® Haswell-U I5-4300U/1.9GHz dual core processor
Chipset Based on Intel® Haswell-U/Broadwell-U SOC platform
Graphics HD Graphics Integrated Intel® HD Graphics 4400, support DirectX 11.2/12, OpenGL4.3 support synchronous / asynchronous display.
Resolution 1*VGA, max support 1920×1200@60Hz1*HDMI, max support 3200×2000@60Hz
Storage Memory 1* SODIMM support 1600/1333MHz DDR3L/1.35V memory, max up to 8GB
HDD Support 1*2.5 inch HDD expansion
CF N/A
SSD Support 1*MSATA SSD expansion
Audio Sound Card Integrated ALC662 6 channels Hi-Fi audio controller, support MIC, Line_out
Network Ethernet 2*WGI211AT Gigabit Ethernet port, support Wake on Lan, PXE
WiFi 1*Mini-PCIE slot, support WiFi, 3G module
I/O port USB 2* USB2.0, 2*USB3.0
Power Switch 1* Power Switch
LAN 1* LAN (RTL8111E/F, Gigabit Ethernet)
Display 1* VGA, 1*HDMI display output
Serial Port 5* RS232 serial port, COM3 support RS485/422
Power In 1*12V DC IN Jack
Antenna 2*WIFI/3G SMA antenna (optional)
Audio 2*MIC, 2*Line-out
Power Adaptor Input AC 110V ~ 220V
Output DC 12V 5A
Reliability Operating Temp. 0℃~45℃
Storage Temp. -20℃~70℃
Relative Humidity 5%-95%, no condensing
Vibration 0.5g rms/5-500HZ/random/operating
Operating System Support Win7/Win8/Win10/Linux OS
