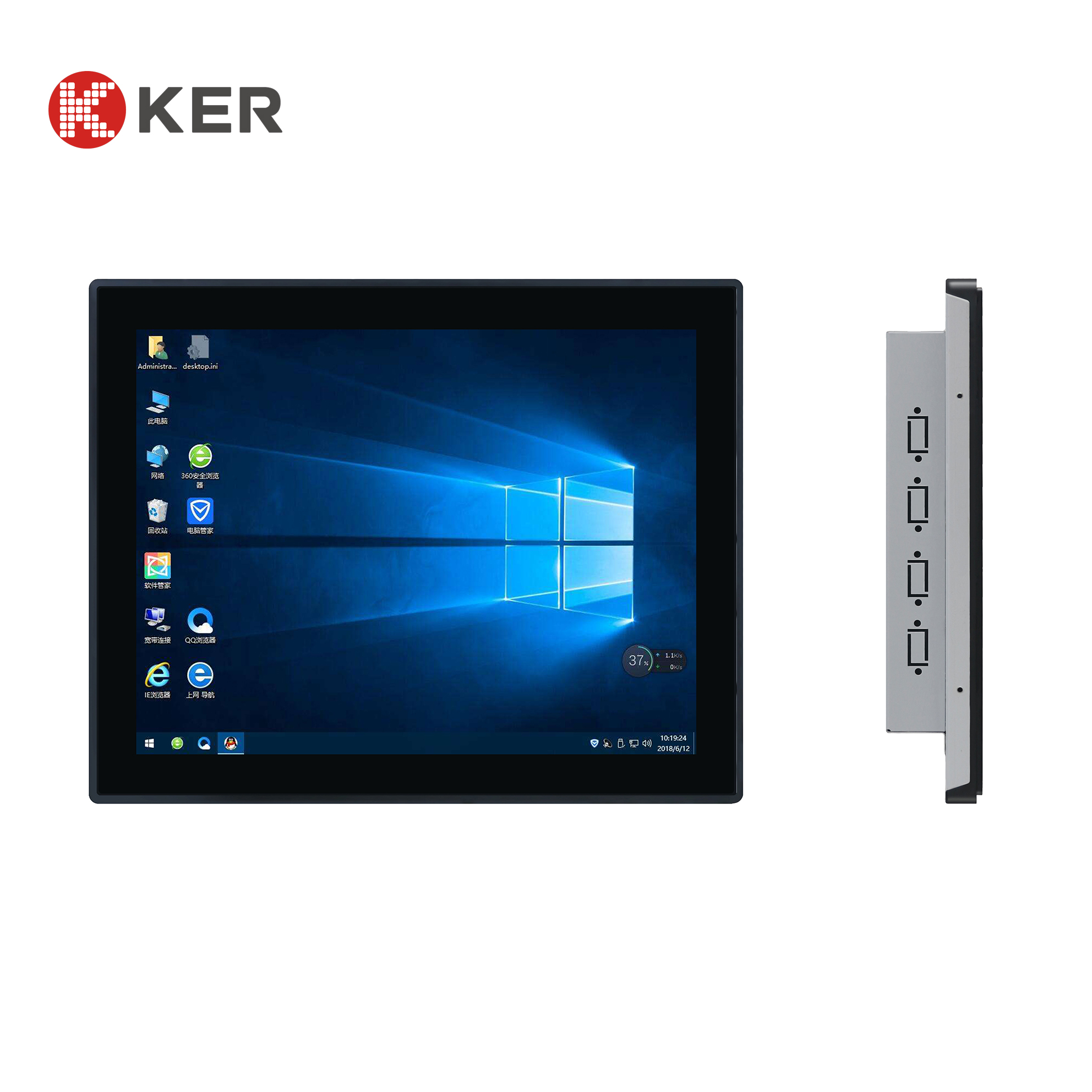

19” Capacitive Touch Monitor
INTRODUCTION
The Touch Screen allows users to operate the host as long as they lightly touch the icons or text on the computer display with their fingers, which eliminates keyboard and mouse operations and makes human-computer interaction more straightforward. Mainly used in public hall information query, leadership office, electronic games, song ordering, multimedia teaching, air ticket/train ticket pre-sale, etc. The products are mainly divided into three categories: capacitive touch screen, resistive touch screen and surface acoustic wave touch screen.
• Standard sizes List for PCAP touch overlay:
10.1”,10.4″,12.1″,13.3”,15″,15.6″,17″,17.3″,18.5”,19″,21.5″,22″,23″,23.6″,24″,27″,32″,42”,43”,49”,50”,55”,65”
FEATURES
—-Capacitive touch screen( and Resistive touch screen,IR touch screen or Non-touch screen option)
—–Way to install:Embedded/desktop/wall mounted/VESA
—–Color:Black/white
——Material:Aluminum alloy structure
——Panel:HD industrial TFT LCD.
——Environment:indoor/outdoor.(IP65 waterproof&dustproof in front of panel)
——-5ms response time,60000 hours life span
SPECIFICATION
| Model | KER | ||
| Monitor Type | Open Frame Touch Monitor | ||
| LCD Panel Type | TFT-LCD | ||
| Size | 19″(Inch) | ||
| Color | Black | ||
| Active Area | 376.3mm*301.1mm | ||
| Maximum Showable Resolution | 1280*1024 | ||
| Colours Displayed | 16.7M | ||
| Brightness | 250cd/m2 | ||
| Typical Reaction Time | 5ms | ||
|
Visual Angle (Typ.at CR>10)) |
Horizontal | 89°/89° | |
| Vertical | 89°/89° | ||
| Contrast | 1000:1 | ||
| External Connectors | VGADVI OR VGA/HDMI(Optional) | ||
| Frequency(H/V) | 30~80KHz / 60~75Hz | ||
| Power Supply |
Type: AC Adapter Input Voltage: 100-240 V AC, 50-60 Hz Output Voltage: 12 volts at 3amps max |
||
| Operating Temperature | Working Temperature. | -10~60°C | |
| Storage Temperature. | -20~70°C | ||
| Working Humidity: | 10%~90% | ||
| Storage Humidity: | 10%~90% | ||
| MTBF | 50,000 Hours | ||
| Backlight Life times(Type) | 50,000 Hours | ||
| Backlight | LED | ||
| Power Consumption | 20W Max. | ||
| Monitor Controls | Button | POWER,AUTO,RIGHT,LEFT,MENU | |
| Function | Brightness,Contrast Ratio,Auto-Correction,Phase Adjustment,Timer,Position,Language,Function Setting,Reset | ||
| Touch Technology | Projected Capacitive 10-Point Multi Touch | ||
| Touch Interface | USB | ||
| Warranty | 1 Year | ||
