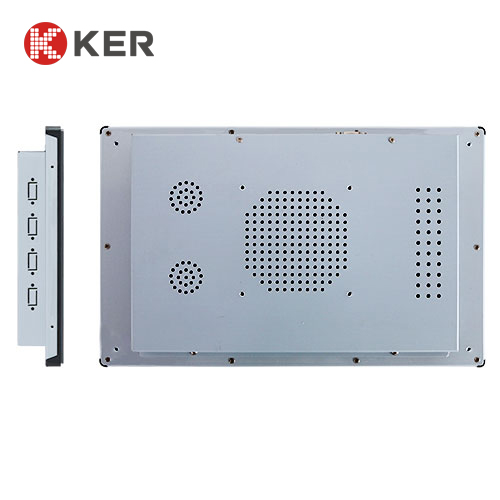

21.5” Capacitive Touch Monitor
INTRODUCTION
The Touch Screen allows users to operate the host as long as they lightly touch the icons or text on the computer display with their fingers, which eliminates keyboard and mouse operations and makes human-computer interaction more straightforward. Mainly used in public hall information query, leadership office, electronic games, song ordering, multimedia teaching, air ticket/train ticket pre-sale, etc. The products are mainly divided into three categories: capacitive touch screen, resistive touch screen and surface acoustic wave touch screen.
• Standard sizes List for PCAP touch overlay:
10.1”,10.4″,12.1″,13.3”,15″,15.6″,17″,17.3″,18.5”,19″,21.5″,22″,23″,23.6″,24″,27″,32″,42”,43”,49”,50”,55”,65”
FEATURES
Product Application Areas:
1. Schools, Training, Enterprises, Governments, Conferences, Households
2. Banks, Securities, Insurance, Financial Services, Real Estate
3. Mobile, Unicom, Telecom, Netcom, Tietong, Electricity, Water Conservancy and Mineral Resources
4. Public Security Monitoring, Fire Control, Traffic Dispatching Room, Security Monitoring, Aviation Command, Military Command
5. Industry and Commerce, Taxation, Customs, Government Hall, Consulate Visa, Entry-Exit Port
6. Post, Airport, Station, Logistics, Port, Parking lot, Automobile City, Bus
7. Interactive Platform of Hospital Waiting, TV Station, Public Welfare Institution, Lottery Inquiry and Rural Information
8. Wholesale Malls, Large Sales Groups, Supermarkets, Shopping Malls, Elevator Advertising in Office Buildings, Advertising Media
9. Museums, libraries, exhibition halls, demonstration halls, public places, cinemas, stage performances
10. Hotels, hotels, restaurants, bars, cafes, leisure clubs, karaoke halls, Internet cafes, entertainment venuesa
ADVANTAGES
1.Using new A+grade industrial TFT LCD screen
2.10-point tempered cover lens option.
3.The screen is full flat with IP66 dust and waterproof resistance.
4.The material is Aluminum alloy enclosure with efficient heat dissipation.
5.Using Industrial grade motherboard with reliable performance.
SPECIFICATION
| 21.5 inch Window Touch All In One PC | ||
| Panel | LED Backlight | |
| Screen Size | 21.5inch (16:9) | |
| Viewing Area: | 476.64×268.11 mm | |
| Viewing Angle: | (H:170° V:160°) | |
| Resolution: | 1920×1080 | |
| Brightness: | ≥ 250cd/m2 | |
| Color: | 16.7M(8-bit 2(LVDS) | |
| Response Time: | <5ms | |
| Touch Panel | Touch Mode: | 10 points Multi-Touch Capacitive Touch Screen |
| Quantity of Touch Point: | Standard Configuration: 10 Touch Points, enlarging and shrinking images is availablle, it also supports multi-touch. | |
| Touch Identification Validity: | > 1.5mm | |
| Response Time | < 5ms | |
| Communication Code: | High Speed USB 2.0, 3.0 | |
| Parameters of Display | Power Supply Interface: | 12V |
| Interface inputs | VGA, HDMI, Speakers, Earphone, Audio, RJ45, 4USB | |
| Housing Material | Frame | All metal frame with very stable quality |
| Operating System | OS type | Windows 7/ Windows 8/CE/Mac/Android/Linux /XP |
| Appearance: | Surface Hardness | Thermal Tempering, Morse magnitude 7 explosion-proof glass |
| Power Supply Parameters | Input Power Supply: | 220V AC 50/60Hz |
| Output Power Supply: | 12V 5A | |
| Overall Power Consumption | <220W | |
| Standby Power Consumption | <3W | |
| Working Life: | > 50000 Hours | |
| Refresh Frequency: | 60Ghz | |
| Parameters of Computer | Solution Type | X86 |
| Chip | Intel Celeron,i3-4025U | |
| RAM | DDR3 4G | |
| Hard Disk | SSD 120G | |
| Display Card | Integrated Display Card | |
| Definition | 720P/1080P | |
| Operating System | Multi-touch System: Windows 7/ Windows 8/Windows 10/ Android/Linux | |
| Single Touch System: XP/CE/MAC | ||
| Network Adapter | Integrated 10/100/1000M auto-adaptive Network Card( 10/100/1000M), Wireless Network Card 802.11a/b/g/n( 802.11a/b/g/n) | |
| Power Supply Input | 220V AC 50/60Hz | |
| Overall Power Consumption | <220W | |
| Standby Power Consumption | <3W | |
